VS-S-C3 – Interactive 4K display with infrared touch

VS-S-C3 precise infrared touch technology

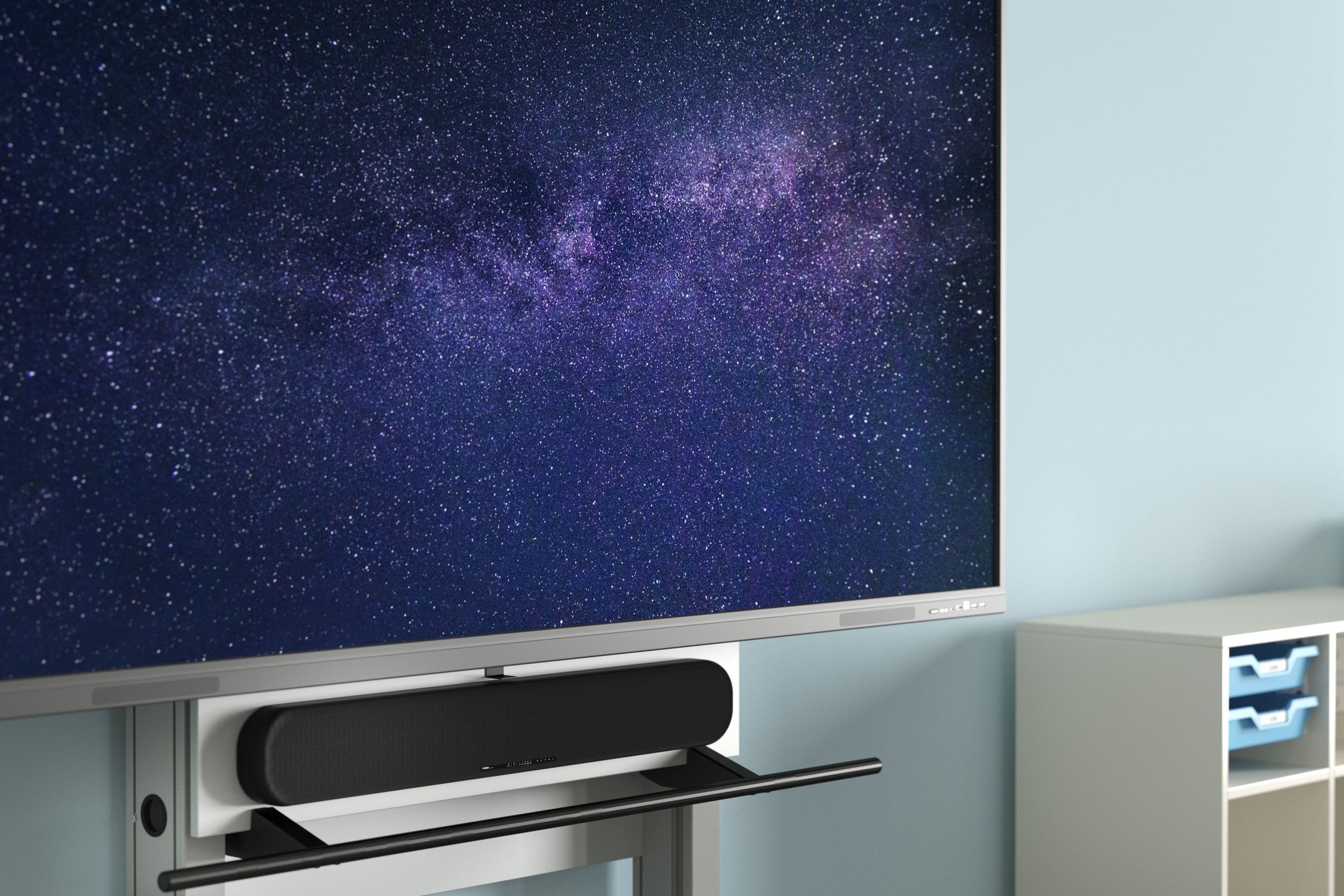

VS-S-C3 display on a height-adjustable mounting system with a crystal-clear 4K image of a starry sky.

The VS-S-C3 display brings ideas to life: razor-sharp 4K images, responsive infrared touch operation, and robust safety glass make it the ideal partner for presentations and collaboration in schools.

Jump to Products

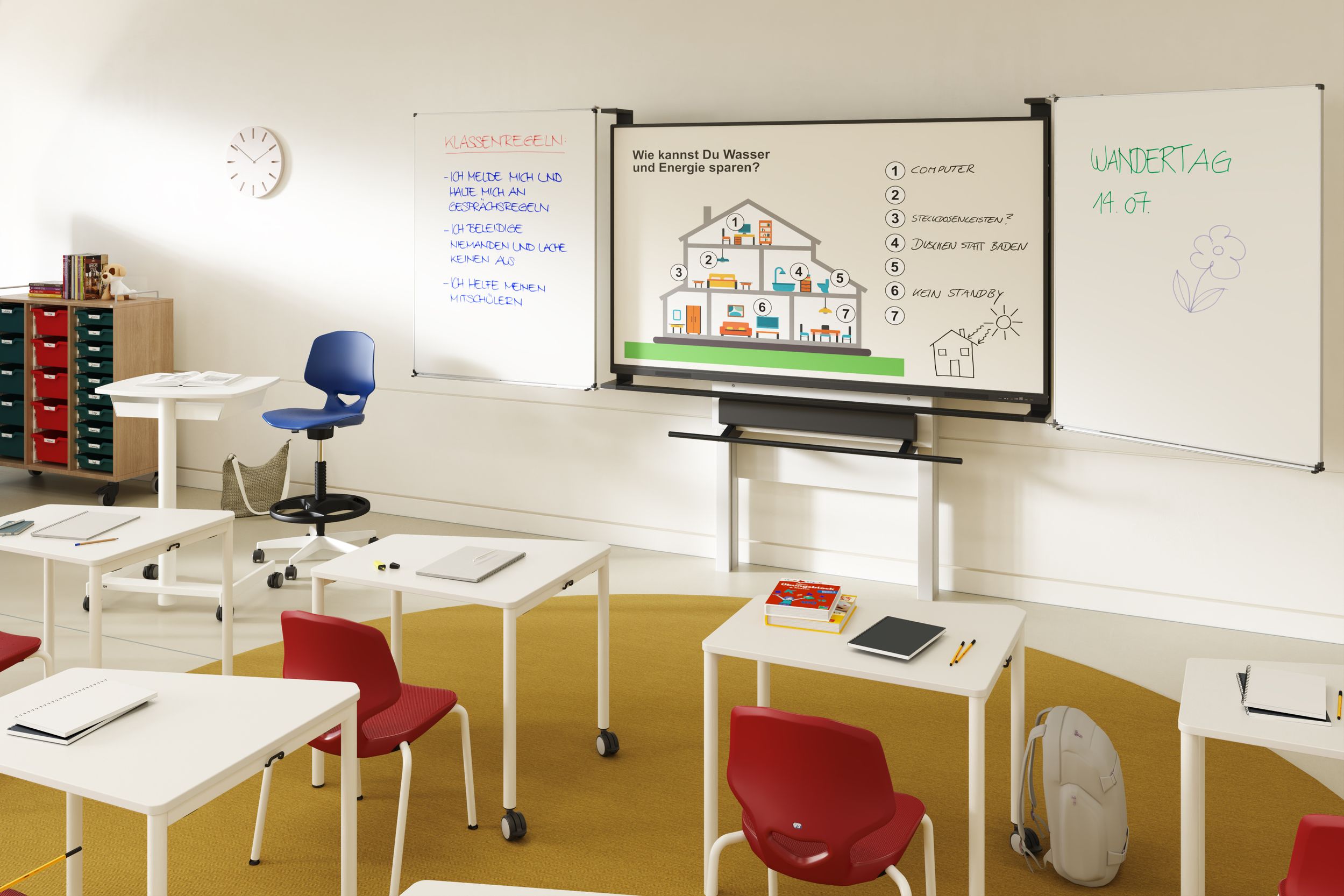

Elementary school classroom featuring VS Tano desks, VS Jumper Four chairs in red, and a VS Jumper Ply teacher’s swivel chair in blue—with a VS-S-C3 display on the wall flanked by whiteboards.

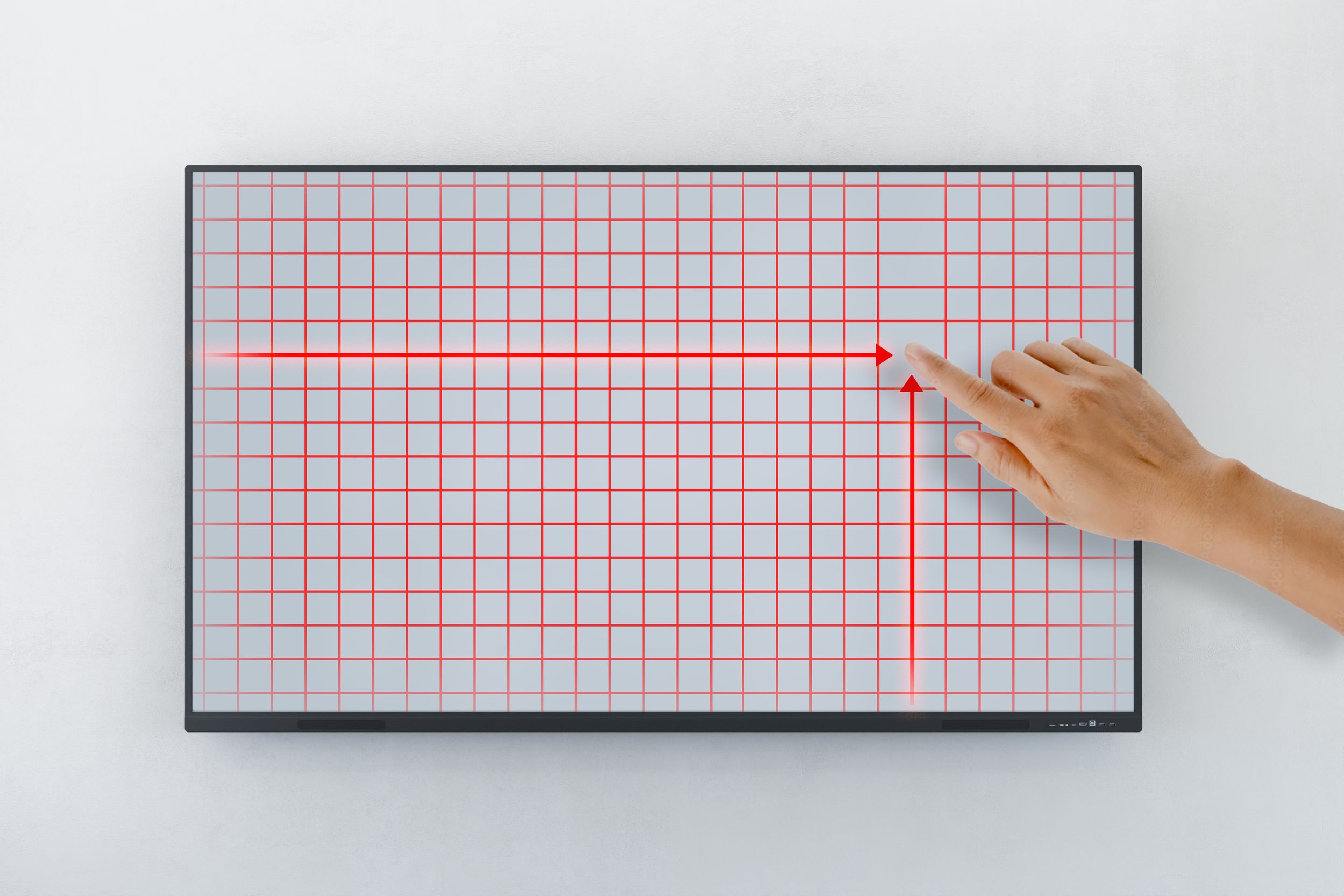

A hand touches the VS-S-C3 display—a red infrared grid visualizes precise touch detection in real time.

Infrared touch technology

Fast response times
Smooth writing and drawing
Short response times (< 10 ms) and high accuracy (± 1.5 mm)
Works even in direct sunlight or very bright environments
Detects fingers, gloves, passive pens or virtually any solid object
Toughened safety glass: (3 mm) with Mohs hardness 9
No special calibration required after installation

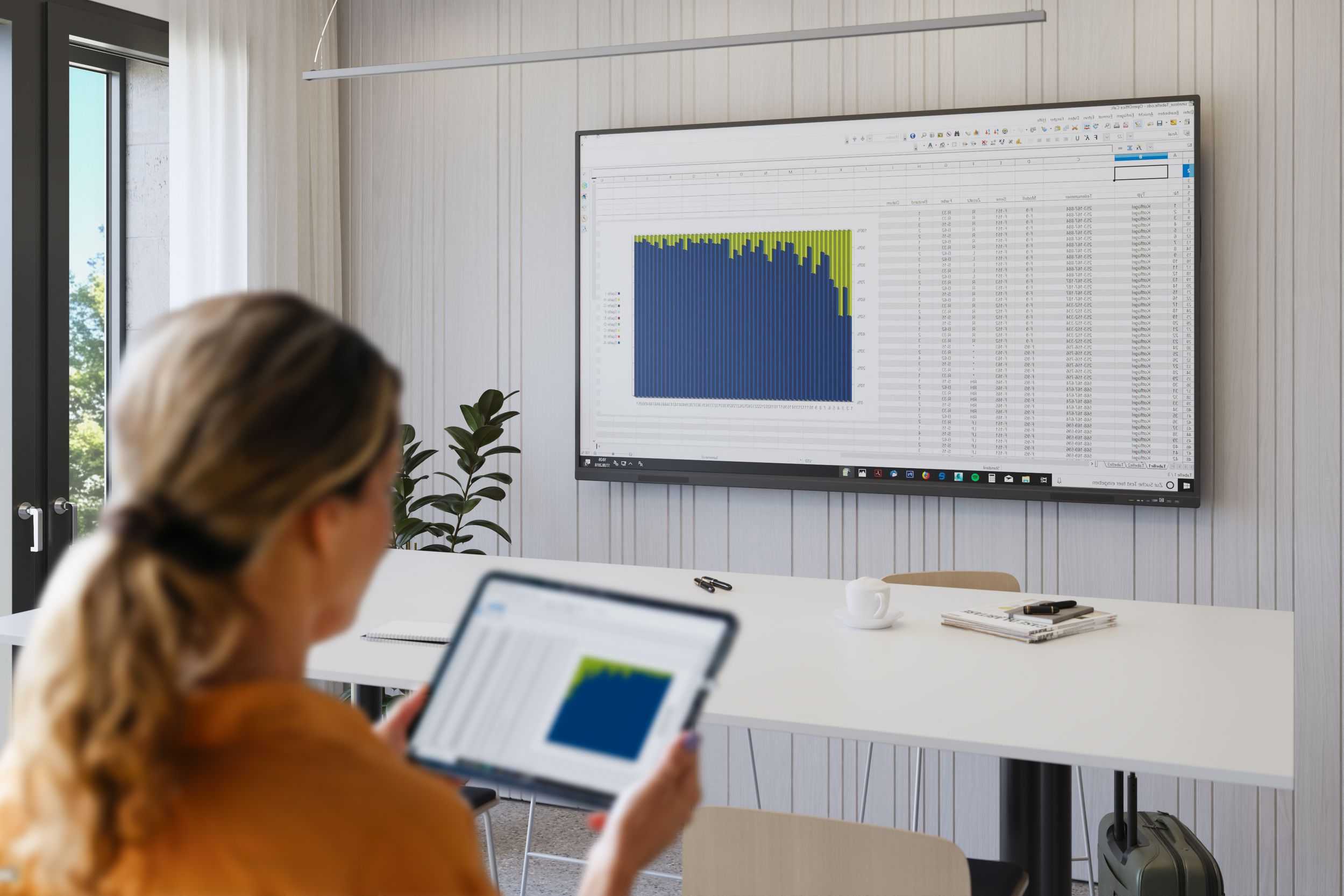

Woman reflects tablet contents on a VS-S-C3 display

Powerful overall system

Android 11.0 – reliable and intuitive
Fast processor & 8 GB RAM – smooth operation guaranteed
Excellent 4K UHD display with high colour fidelity and viewing angle stability

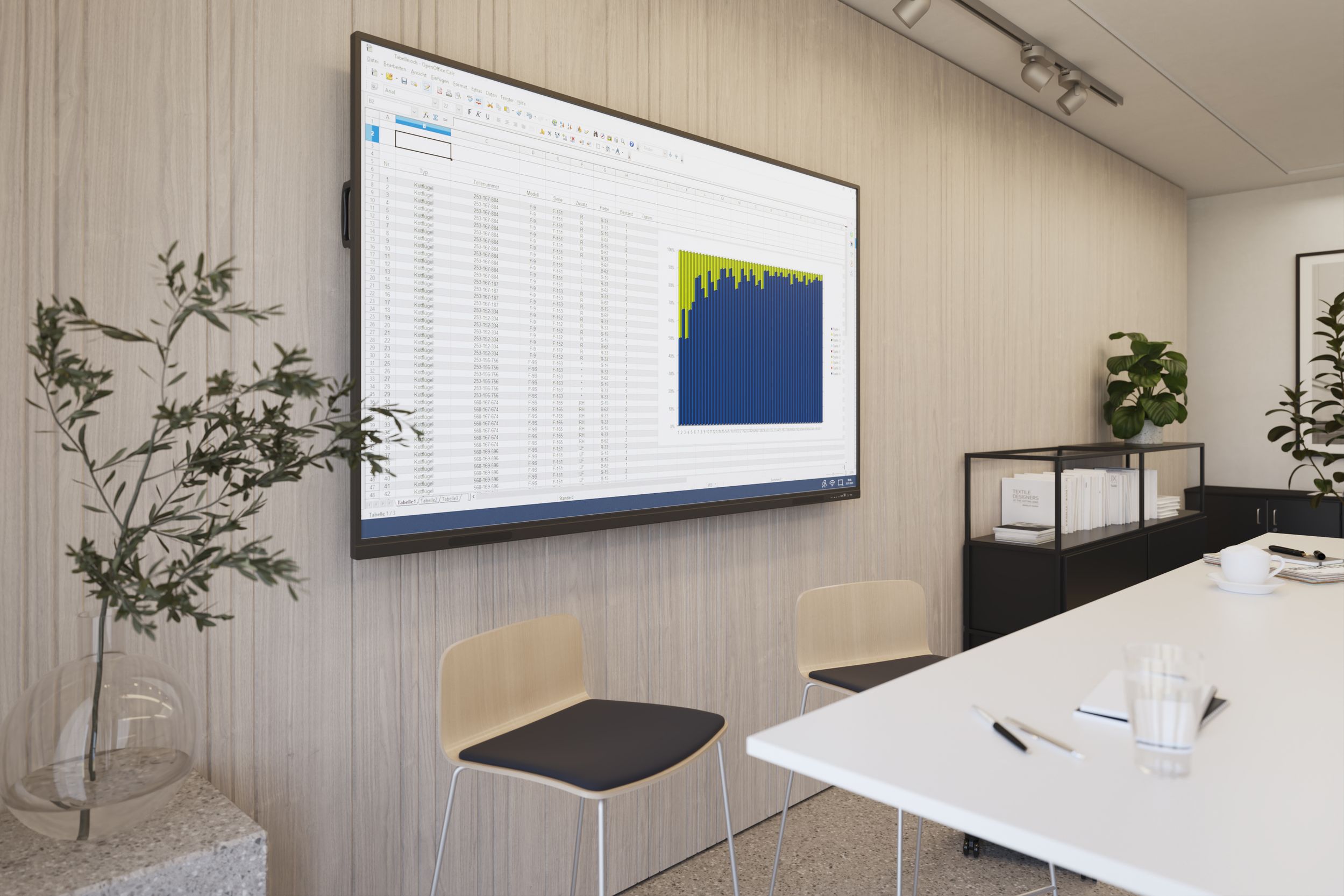

VS-S-C3 display in a modern meeting room

Technical highlights

Brightness: 450 cd/m²
Contrast ratio: 5000:1
Viewing angle: 178
Touch points: 40-finger touch
Response time: < 10 ms
Speakers: 2 × 16 W, 80 dB sound pressure

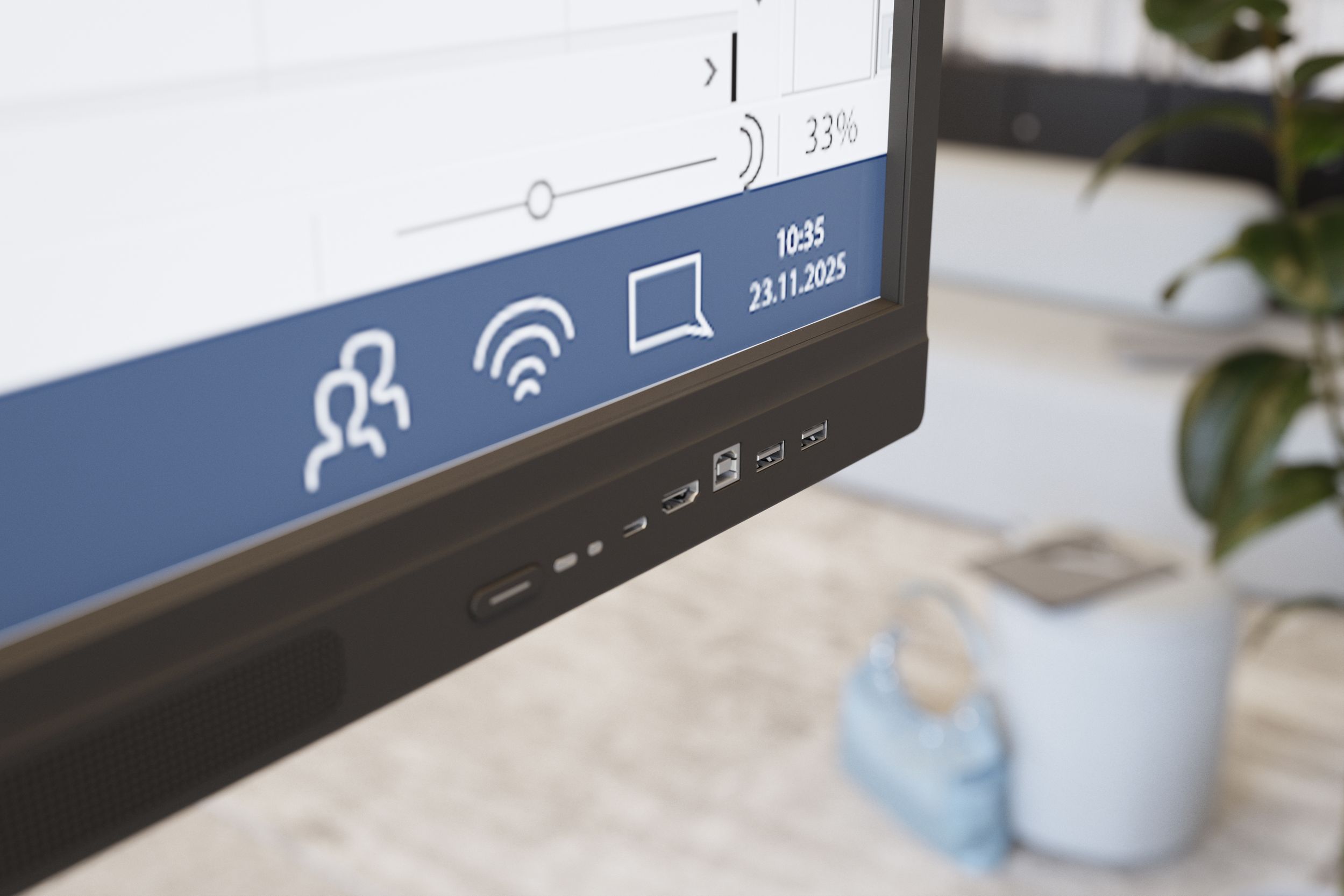

Connections of the VS-S-C3 display from VS

Connections at a glance

3 × HDMI (including 1 × front)
4 × USB 3.0 (including 2 × front), 1 × USB 2.0
1 × USB-C 3.1 (65 W, front)
VGA, audio input/output, SPDIF, RS232, LAN input/output
OPS slot 80 pin

Optionally with plug-in PC

OPS format enables Windows environment alongside Android
All interactive functions are retained
Perfect for hybrid learning and working environments as well as flexible use

What else sets the VS-S-C3 display apart?

Start everything at the touch of a button – display, optional PC & integrated operating system
Individual start-up and shut-down times can be set
Source selection, volume & brightness via an on-screen interface
Task manager with quick access
Internal OS can be switched off
PC-free lock mode – protects against unauthorised access
Renaming of sources possible
Multi-window mode – can be switched on and off

Play files directly – PDF, Word, Excel, PowerPoint without a PC
Freeze function – "freeze" the image
Blank function – completely darken the screen
Annotations – in all documents & apps, both PC-free mode and Windows mode
Page toolbar – can be collapsed on the left and right: annotations, screenshots, timer, spotlight, voting, freeze, display lock
Cloud storage can be integrated
Home screen can be customised – apps, files, websites, background image
Subsequent app installation possible via administrator

At least 10 pen colours + custom colour mixing
Background templates for different classes & custom backgrounds
Delete with palm or tool
Handwriting & shape recognition
Digital drawing tools: ruler, protractor, 2D & 3D shapes
Tables with automatic cell adjustment
Unlimited expandable workspace
Save as whiteboard or PDF file, shareable via QR code
Customisable toolbar & erase function on the pen
Mind map function
Entire board image scalable & erasable at the touch of a button

Mirroring of at least 9 mobile devices simultaneously (Airplay, Miracast, Chromecast)
Approval mode for controlled transmission
Real-time camera transmission & remote control
Transmission from display to display & to mobile devices
Data protection mode – anonymous preselection of files
Image and sound transmission with touchback function for Miracast

USB-C (wired)	Wireless screencasting
Everything via one cable: transfers image, sound, data, power, touch and network access	Completely wireless: mirror multiple device screens simultaneously
Integrated docking station in the display, no additional hardware required	Supports AirPlay, Chromecast, Miracast (even without a network connection or app) and Bytello Share in mixed operation
Plug & Play: simply connect and start immediately	Works with mixed device environments: Apple, Android and Windows devices – no cables, apps or drivers required
Stable connection with maximum quality	High image and sound quality, even with multiple participants
Simultaneously charges the connected device	PIN code protected, quick to connect, no installation required
Ideal for interactive use, e.g. touch control or file transfer	Perfect for quick presentations and spontaneous contributions

VS Service – Reliable. Personal. Lifetime.

With VS Service, you not only receive a high-quality product, but also long-term, reliable support – a promise that goes far beyond the usual warranty.

Lifetime, free service hotline – even after the warranty has expired
Free updates – easily via OTA (Over the Air)
3-year warranty – up to 5 years or individual term possible

You can download our brochure here

Digital service catalogue

VS General Document

VS General Documentpdf7 MB

Inspired School 3 Digital becomes part of everyday life

VS General Document

VS General Documentpdf7 MB

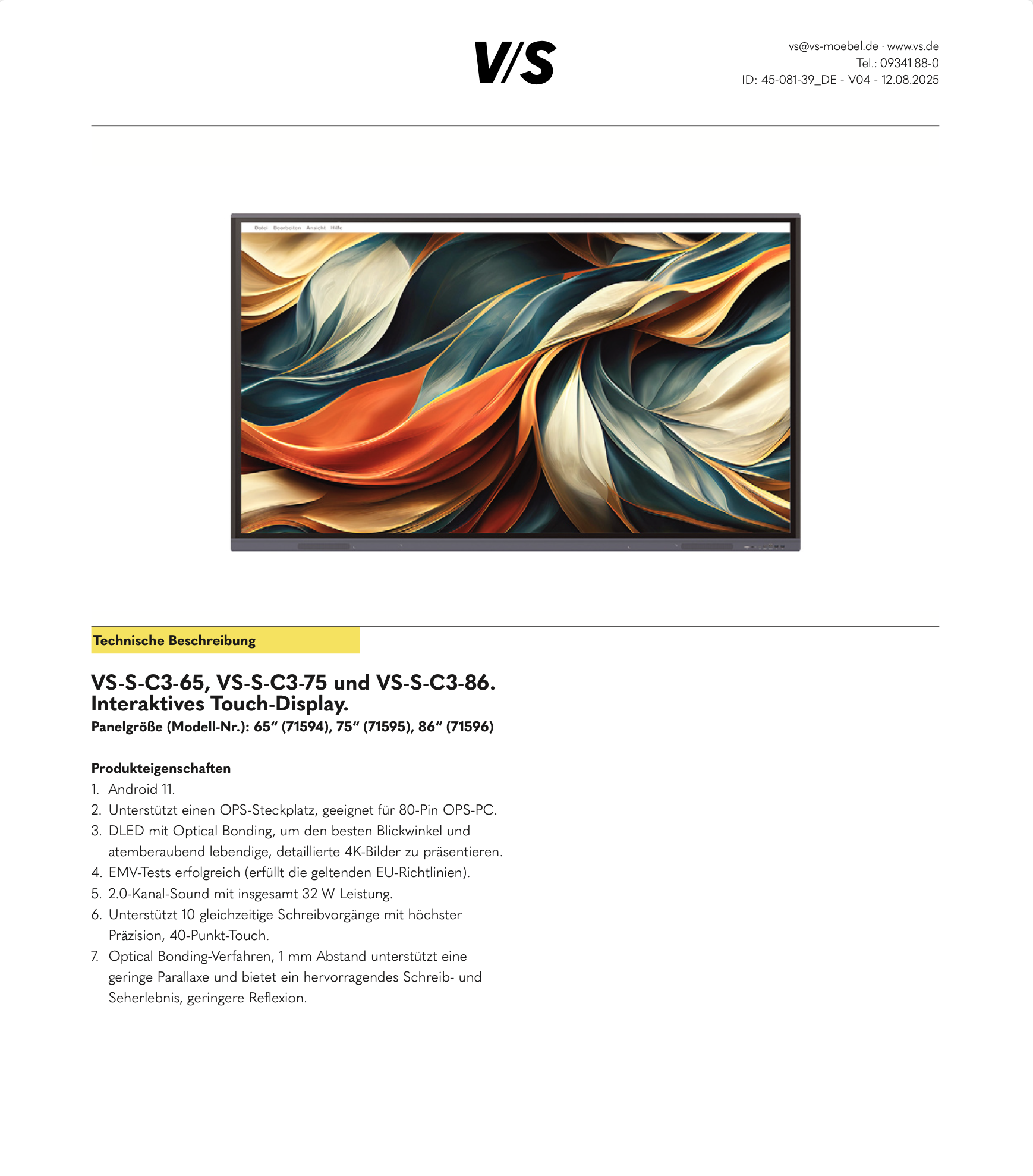

Technical description

You can conveniently download the technical description here. The document contains all the important information, such as the various connections.

Technical description VS-S-C display (German only)

VS General Document

VS General Documentpdf1 MB

Would you like to experience our solutions live?

Request a demo here

Would you like to experience our solutions live?

Request a demo here

1 products for VS-S-C3 – Interactive 4K display with infrared touch | VS

Our comprehensive service includes:

1

Delivery and professional installation

2

Cabling and connecting your media technology

3

Disposal of packaging material

Our display recommendations – compiled for you

VS SIGN display

The non-touch display provides a clear and precise display without interactivity. It is ideal for applications where only simple visualisation without direct user input is required.

To VS Sign

VS Dual – the all-rounder

Your all rounder for every environment: brilliant QLED image quality with infrared technology, EDLA certified and TÜV Eyesafe approved for eye friendly working. With two slots for plug in PCs and display sizes from 55 to 110 inches, it offers maximum flexibility for modern business and education applications.

To VS DUAL

CTouch Riva R2 – sustainable total solution

The sustainability bundle, consisting of a height-adjustable mounting system with gas pressure spring and the CTOUCH Riva R2 display with built-in infrared technology, stands for future-proof education. A well-thought-out combination of quality, environmental awareness and responsibility – for schools that think and act sustainably.

To CTouch-Riva

SMART RX series

RX displays offer brilliant 4K resolution, precise multi-touch with up to 40 touch points, and Android iQ for PC-free working – complemented by built-in infrared technology. Integrated audio, environmental and safety sensors make them an excellent solution for modern, interactive teaching.

To Smart RX

SMART MX Series

The SMART MX series impresses with razor-sharp 4K resolution, precise HyPr Touch™ technology, integrated infrared technology and Android 13 for PC-free working. It offers comprehensive connectivity and free software for modern, collaborative teaching.

To SMART MX

VS-S-P series – completely intuitive

The VS S P3 is the display for schools: large display, capacitive multi touch technology and multi user support combine the advantages of a tablet with a digital whiteboard. Precise and smooth operation makes it ideal for interactive collaboration and modern teaching.

To VS-S-P series

Promethean ActivPanel 10

The Promethean ActivPanel 10 combines state-of-the-art display technology with infrared technology, versatile system integration, and advanced communication features. This enables interactive learning and productive collaboration at the highest level.

To Promethean ActivePanel 10

Promethean ActivPanel 10 Premium

With a crystal-clear 4K display, lightning-fast touch response, and intuitive operation, the ActivPanel 10 Premium brings state-of-the-art infrared technology directly into the classroom. Designed for true collaboration and seamless teaching—just turn it on and bring knowledge to life.

To Promethean ActivePanel 10 Premium

Sales IT solutions

Please do not hesitate to contact us if you have any questions.

Our support systems

VS Display on a MediaPilon-GF mounting system with gas spring – infinitely height-adjustable, power-free, and accessible to all users

With gas pressure spring (GF)

Gas springs enable effortless, infinitely variable height adjustment—without electricity and with minimal maintenance. At the same time, they have a dampening effect and protect the mechanics, which extends the service life of the components. They are characterized by durability, user-friendliness, and particularly sustainable use.

Gas spring mounting systems

VS Display on a MediaPilon-GG mounting system with a counterweight—infinitely height-adjustable and powered by a battery—with a VS Jumper chair next to it.

With counterweight (GG)

Mechanical precision meets intuitive operation – the counterweight support system allows effortless height adjustment without electricity. Specially developed for the education sector, where teachers and students of all ages use the display safely and effortlessly every day. Reliable, economical and completely barrier-free.

counterweight mounting system

VS Display on a MediaPilon EL mounting system with electric height adjustment—alongside two VS Hokki stools in dark blue and light blue.

Electric motor (EL)

The ideal working height at the touch of a button: electric height adjustments allow displays to be adjusted very quickly and effortlessly. This also enables people with limited mobility to operate the system.

Electric motor-driven mounting systems
